產品描述Product description
◆FD2X系列是一款通用型的滑動開關，也叫推拉開關或推撥開關，應用于各類需要檔位控制的電動工具，如：吹吸機、多功能鋸、打草機等。
◆FD2X series are general type slide switches, commonly for used in power-tools such as Blowers, Multi-function Saws, Grass Trimmers, etc.
產品特征Features
◆內部為蹺板結構，使用壽命可達5萬次
◆With rocker structure, the endurance life can be 50,000 cycles
技術數(shù)據Technical data
→機械耐久壽命 Mechanical life endurance≥1E5
→電氣耐久壽命 Electrical life endurance≥5E4
→最大沖擊電流 Max. Inrush current at 250V36A
→最大沖擊電流 Max. Inrush current at 125V60A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M Ohm
→基本介電強度 Dielectric strength of function1500V
→加強介電強度 Dielectric strength of reinforced3000V
→環(huán)境溫度 Ambient temperature0°C~ 55°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→適用于II類防護器具 Suitable for appliance s of protection class II

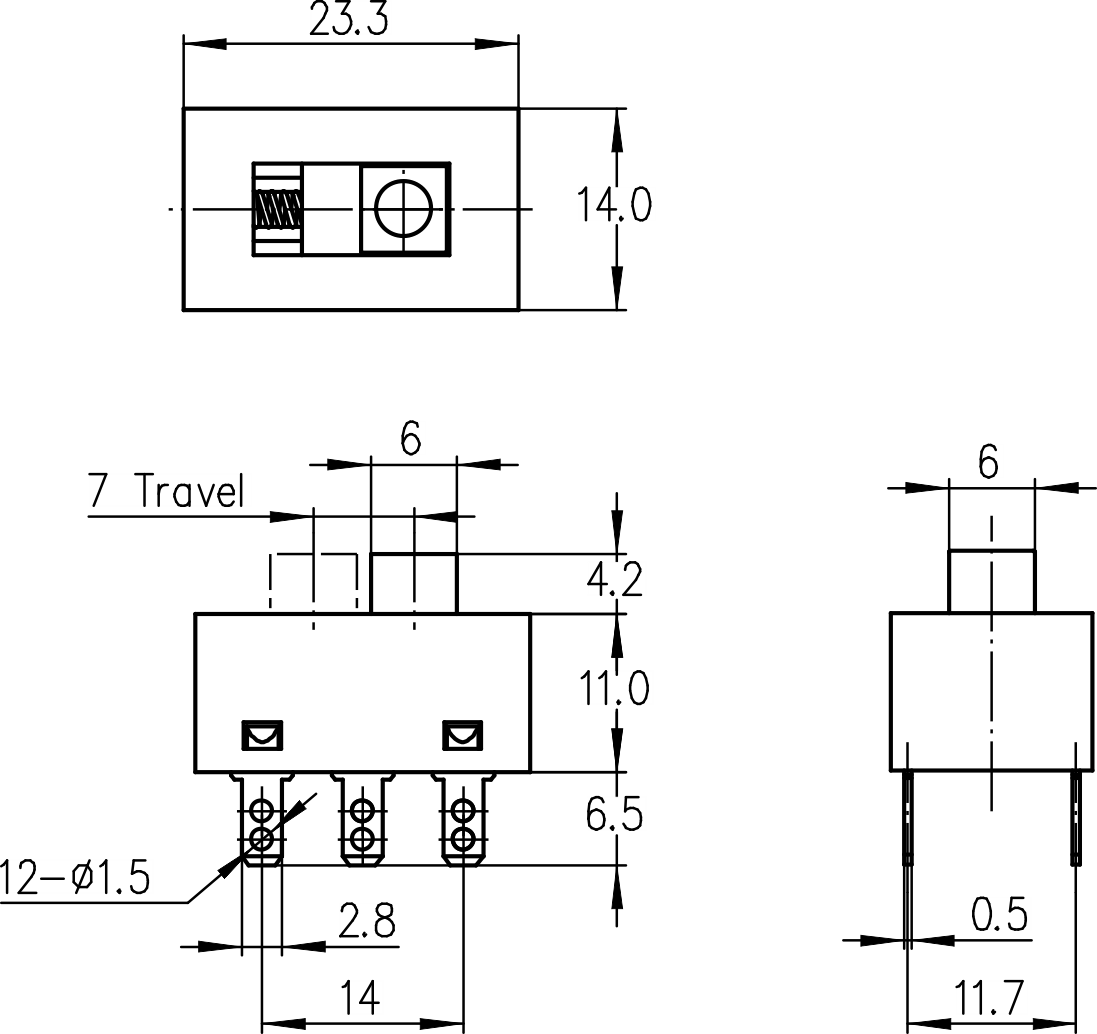

端子類型Terminals
◆輸入端/輸出端 Input side/Output side:
→焊接端子Soldering terminals 2.8×0.5mm
→線路板焊接端子PCB Soldering terminals 2.8×0.5mm
電氣參數(shù)和認證 Electric Rating and Certification
