FDU系列是一款專用型的滑動并關，也可推拉并關或推撥并關，應用于汽油動力園林工具，如：汽油動力打草機、汽油動力吹吸機、汽油動力鏈鋸等。 FDU series are speciai typesiideswitches, commonly forusedin Power Gardening tools, such as Power Grass Trimmer, Power Blowers, Power Chain-saws, etc.
產品特征Features
可選帶以下功能 Optional with following function:
→單極單擲 Single Pole Single Throw
→單極單擲點動 Single Pole Single Throw with momentary act
技術數(shù)據(jù)Technical data
→機械耐久壽命 Mechanical life endurance≥5E4 →電氣耐久壽命 Electrical life endurance≥1E4 →最大沖擊電流 Max. Inrush current at 250V2A →最大沖擊電流 Max. Inrush current at 125V4A →接觸電阻 Contact resistance≤30m Ohm →絕緣電阻 Insulation resistance≥7M Ohm →基本介電強度 Dielectric strength of function500V →加強介電強度 Dielectric strength of reinforced500V →環(huán)境溫度 Ambient temperature0°C~85°C →阻燃等級 FlammabilityUL 94V-0 →防護等級 Protection typeIP40 →適用于II類防護器具 Suitable for appliances of protection class II
端子類型Terminals
輸入端/輸出端 lnput side/Output side:
→插片端子 Plug terminals 6.3×0.8mm
→插片端子 Plug terminals 4.8×0.8mm

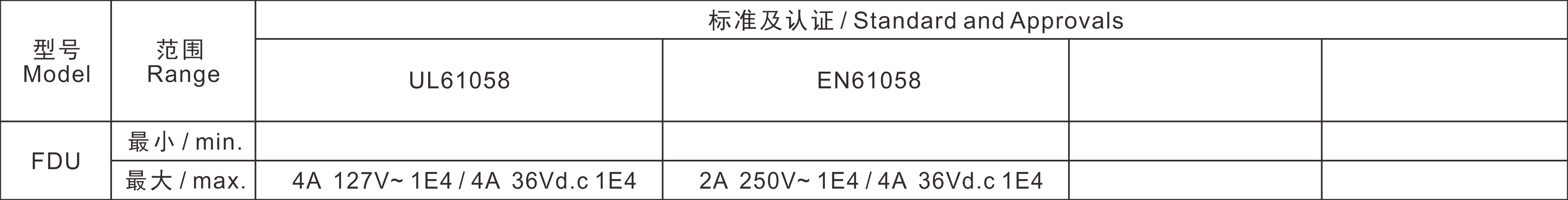

電氣參數(shù)和認證 Electric Rating and Certification
